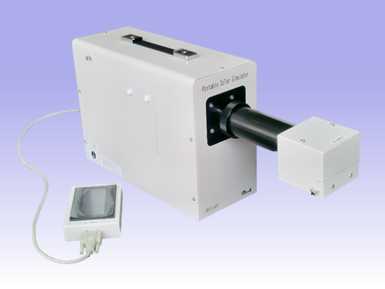

Solar Simulator PEC-L01

Overviews

nThe weight is 8kg.
nPower supply and lamp housing are in the one body.
nIllumination head is freely rotatable in 360 degree.
nNormal 50 mm x 50 mm optical filters can be equipped in the illumination head.



nTouch panel remote controller operates a solar simulator.

Spec



     Simulator Class

     Class AAA



     Uniformity

     ?2 %

     Lamp Type

     Xenon



     Temporal Instability

?2 %

     Lamp Wattage

     150 W



     Working distance

1    30 mm

     Output Beam Size

     40  x 40 mm2



     Beam Direction

     Rotate in 360°

     Beam Divergence, Half Angle

     <±8°



     Power Requirements

      AC 90-120 V
or AC 180-240 V

     Typical Output power

      100 mW/cm2
 (1 sun)



      Main unit size

     W140 x D350 x H250 mm

     Spectral Match Classification

     JIS C8933
JIS C8912
Class A



     Weight

      8 kg

     (Unit body including power supply)
